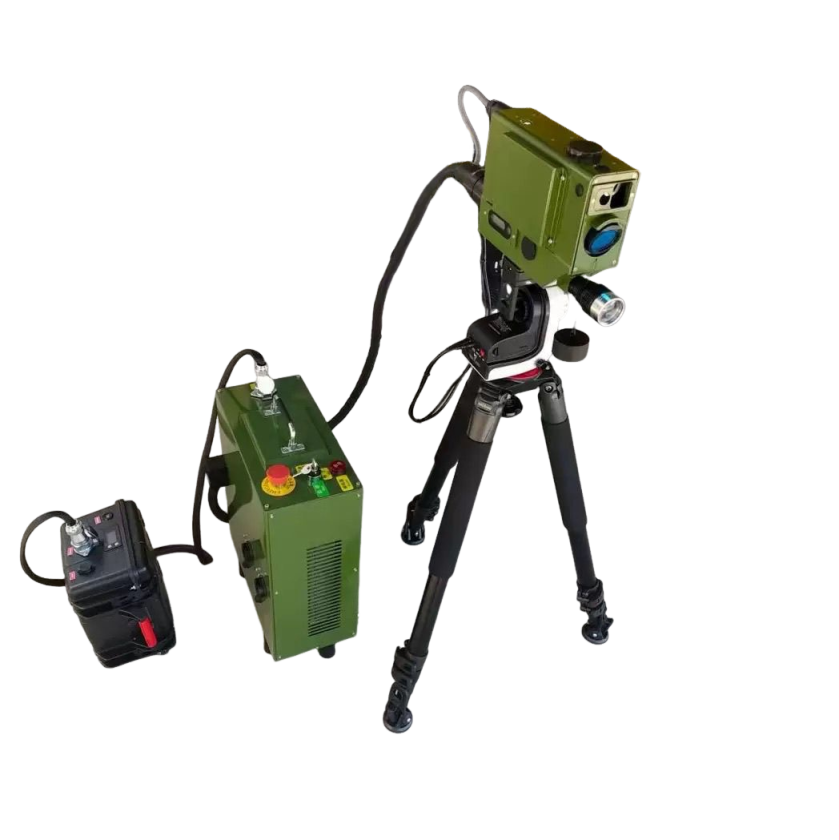

Laser Machine 1200W 022

We only sell to enterprises, power companies or railway companies, communication companies, suitable for clearing high-altitude obstacles!
If you have any questions, please contact us. This is a customized product with a delivery time of 20-30 days.
Laser obstacle clearing device is a device that uses high-energy laser technology to achieve non-contact obstacle clearing,
Mainly used to remove foreign objects suspended at high altitudes in industries such as power systems, railways, and communications
Working Principle:
Based on near-infrared laser technology, electrical energy is converted into high-density light energy through fiber optic transmission. A 1080nm wavelength laser is used, with a peak wavelength of 532nm and a focused spot size 5mm@100m ， 3mm@50m It can instantly generate high temperatures above 3000 ℃, causing non-metallic foreign objects to quickly melt or peel off ice layers through thermal expansion effects.
Product advantages
-Non contact operation: No need to climb or cut off power, reducing the risk of falling from heights, electric shock, etc., suitable for scenarios such as high-voltage transmission lines and railway contact networks.
-High efficiency: Single person operation can complete obstacle clearing in a short time. For example, the fifth generation laser obstacle clearing device of Southern Power Grid can clear a tree obstacle in less than 10 minutes, while traditional manual obstacle clearing takes at least 2 hours.
-Precise and safe: It can accurately cut foreign objects without damaging the circuit body, and is equipped with multiple safety protection measures such as human body sensing devices and anti tipping functions.
-Wide adaptability: capable of operating in environments ranging from -20 ℃ to 50 ℃, resistant to level 6 wind interference, and able to remove various foreign objects such as kite strings, plastic films, tree branches, and ice.
Application scenarios
-Power industry: Remove floating objects, tree barriers, etc. on transmission lines to avoid short circuit tripping.
-Railway system: Quickly clean up foreign objects in the contact network, such as tunnel ice, to ensure the continuity of train power supply.
-Emergency rescue: Efficiently restore power and transportation after typhoons, ice and snow disasters.
Equipment functional characteristics
Low light night vision
Foreign object intrusion alarm
Fingerprint verification password login
GPS positioning
Intelligent targeted adjustment
Automatic cutting
electronic fence
Emergency stop
Intelligent distance measurement
Equipment parameters
Laser power: 1200w
Laser wavelength 1080 ± 1nm
Spot size ≤ 15mm at 150m
Working distance 0-500 meters
Laser power supply voltage DC39-54.6V
Lithium battery output DC39-54.6V
Control mode wireless
Cooling method: air cooling
Camera magnification 30x
Laser ranging from 5-600 meters
Main chassis size 800 * 550 * 330mm
Main chassis weight 45kg
Launch head size 560 * 355 * 225mm
Launch head weight 5kg
Battery weight 20kg
